The fumecupboard is one of the most important safety devices in the laboratory. It is an effective local ventilation method, and the proper selection, installation, operation and maintenance is able to keep its operators and other personnel in the laboratory away from the injury caused by chemical reagents and toxic substances. At the same time, it can provide you with appropriate protection in case of fire or explosion. Manufactured to SEFA standards.
Chemical Fume Cupboard
Xunling
Ducted
GS1200 Lab Fume Hood Price: | |
---|---|
GS1500 Lab Fume Hood Price: | |
GS1800 Lab Fume Hood Price: | |
Customized Size: | |
Availability: | |
Chemical Fume Cupboard Portable Benchtop Walk in And with Cabinet
This fume cupboard is widely applicable to various industrial sectors such as electronics, defense, precision instruments, instruments, pharmaceuticals, chemical agriculture, biology etc, and various scientific or chemical laboratories.
Model | Standard Dimensions Width*Depth*Height (mm) | Standard Dimensions Width*Depth*Height (Inch) |
GB1200 | 1200*850*1500 mm | 47.2″*33.5″59.1″ |
GB1500 | 1500*850*1500 mm | 59.1″*33.5″59.1″ |
GB1800 | 1800*850*1500 mm | 70.9″*33.5″59.1″ |
Model | Standard Dimensions Width*Depth*Height (mm) | Standard Dimensions Width*Depth*Height (Inch) |
GW1200 | 1200*850*2350 mm | 47.2″*33.5″*92.5″ |
GW1500 | 1500*850*2350 mm | 59.1″*33.5″*92.5″ |
GW1800 | 1800*850*2350 mm | 70.9″*33.5″*92.5″ |
Model | Standard Dimensions Width*Depth*Height (mm) | Standard Dimensions Width*Depth*Height (Inch) |
GS1200 | 1200*850*2350 mm | 47.2″*33.5″*92.5″ |
GS1500 | 1500*850*2350 mm | 59.1″*33.5″*92.5″ |
GS1800 | 1800*850*2350 mm | 70.9″*33.5″*92.5″ |
Accessories ;
1. Water channel: It is equipped with imported disposable PP small channel, which is resistant to acid, alkali and corrosion. It is installed on the internal table top of the fume cupboard.
2. Water tap: The 7-type single-outlet water tap is made of brass and installed on the internal table top of the fume cupboard ( Water system is optional, multiple water taps are available on request).
3. Control panel: LCD panel (the speed can be set for free adjustment, it adapts to most similar products on the market, and supports fast startup of 6s of electric damper) is used. There are 8 buttons, which include power, setting, confirm, lighting, standby, fan and+\-key button of damper.
4. Lighting: Opple LED white light quick start type is used for lighting, long service life, and installed on the top inside of the fume cupboard.
5. Socket: Four 10A 220V five-hole multi-function sockets are configured. The power of 2200W is available for most instruments.
6. Wire line: High end 2.5 square copper core wire is used for the internal wiring of the fume.
7. Hinge of lower cabinet door: DTC brand hinge is used with 110 degree straight bending, high service life and easy for assembly and disassembly.
8. Maintenance port: The moveable maintenance window is equipped for the back panel of lower hood for easy troubleshooting.
9. Other devices: Four round holes with the diameter of 42mm are reserved for each side panel of the upper hood to facilitate installation of facilities such as cock etc.

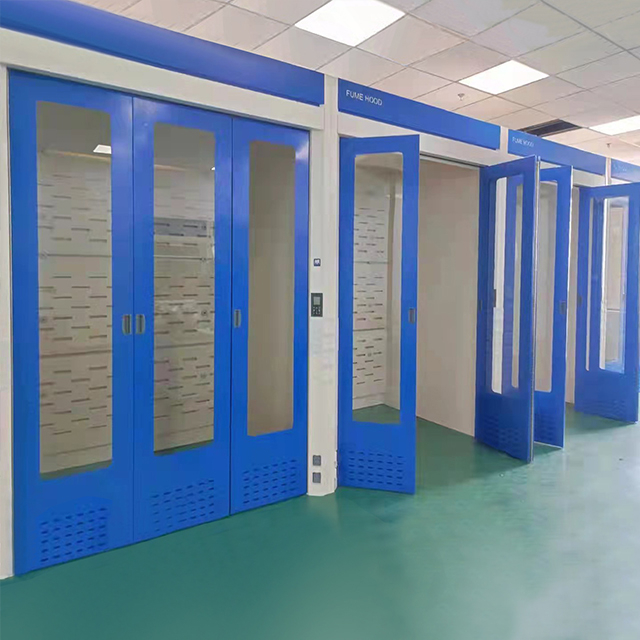

Galvanized Steel Lab Fume Hood | Galvanized Steel Lab Fume Hood Walk in Type Installation |
