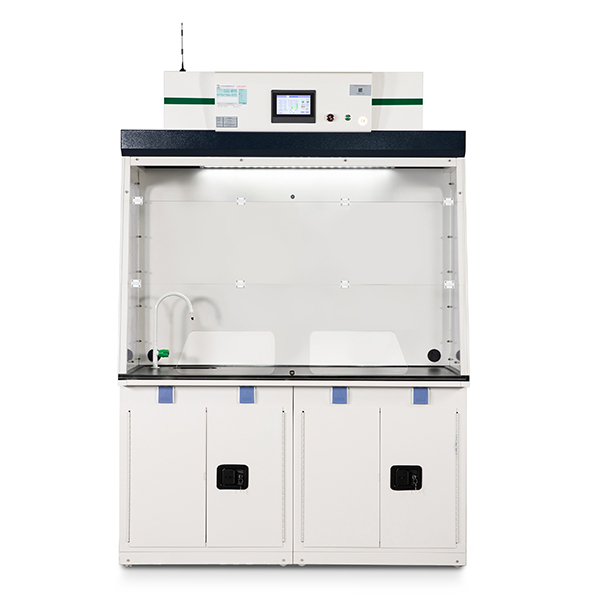

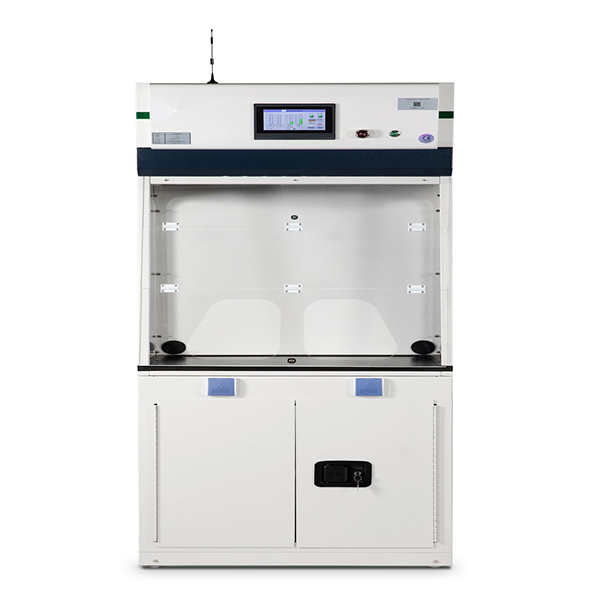

Ductless fume hood with Cupboards
Xunling
1. Silent USA PSC fan draws hazardous substances from below up into the filtration system of high absorption capacity. No static, No spark, and super silent motor, multiple type of filters available with 99.997% efficiency.
2. Advanced dual VOC detector ports work in real-time, one monitors the filters' loading, and the other detects the contamination in the airflow after being filtered. If either of them detects the data out of range, there will be audible and visual alarms.
3. Unique designed LCD touch screen controlling system, which combines all data in one piece computer controlled panel, easy to control fan speed, lighting etc. Convenient to set up and monitor all data.
4. Galvanized steel plate, coated with epoxy resin powder, anti-corrosion, and anti-rust.
5. >6mm thickness transparent acrylic plate, anti-corrosion. Foldable designed sash window with two operation access.
6. High quality Epoxy resin worktop, strong corrosion resistance, anti-scratch, resistant to high temperature and abrasion, and easy to clean.
1. The PSC motor draws air from outside of the cabinet.
2. The airflow takes all hazardous substances goes up into the filtration system.
3. The hazardous substances are adsorbed by multiple filters and remain in filters.
4. The air comes out is pure and fresh.
| Model | DSS800 | DSS1000 | DMS1275 | DMS1600 | DLS1600 |
| Overall Size W*D*H (mm) | 800*620*2070 | 1000*620*2070 | 1275*620*2070 | 1600*620*2070 | 1600*790*2070 |
| Internal Size W*D*H (mm) | 781*574*934 | 981*574*934 | 1256*574*934 | 1581*574*934 | 1581*744*934 |
| Power | 42W | 42W | 126W | 126W | 126W |
| Average Airflow Velocity | 230m⊃3;/h | 230m⊃3;/h | 690m⊃3;/h | 690m⊃3;/h | 690m⊃3;/h |
| Volts / Frequency | 110-240 V , 50-60 Hz | ||||
| Face Velocity | 0.4-0.6m/s | ||||
| Noise Level | 40-52dBA | ||||
| Control Sys | 7″LCD touch screen | ||||
Monitoring & Alarming Sys | Temperature, Humidity, Filter Loading | ||||
| Worksurface | Epoxy Resin Board (Polypropylene and Stainless Steel Optional) | ||||
| Prefilter | Polyurethan prefilter or Activated charcoal | ||||
| Molecular Filters & Final Filters | SFGL OG, SFGL AG, SFGL FO, SFGL AM, SFGL H14 (For Organic,Inorganic,Formaldehyde,Ammonia,HEPA etc. Based on the chemicals need to filter) | ||||
| Optional Accessories | Air Velometer, Water Sink, Water Tap, Gas Cock | ||||
What they don't tell you before choosing a ductless fume hood ?
Check this: https://www.labcleantech.com/how-to-make-a-better-filtration-system.html
If you are wondering whether or not this ductless fume hood can filter your chemical substances ?
Please go to our download center or simply check this: https://iqrorwxhnkqplk5p.ldycdn.com/Xunling+Ductless+Fume+Hood+Adsorption+Capacity+for+Common+Chemical+Reagents-aidloBplKnillSRnjnrqmkqiq.pdf
More chemicals are waiting to be tested into this list.
How well is this ductless fume hood filtration effectiveness ?
Here is a testing report:
