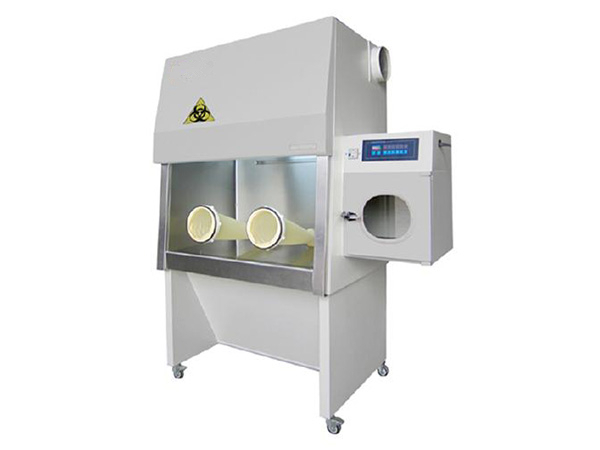

Biosafety Cabinet Class 3 Class III Three Biological Ultra-clean Glove Box Cabinet
0% gas circulation, suitable for volatile toxic, radioactive material samples.
The utility model has the characteristics of full sealing, full negative pressure and full discharge. After two filters, the air is discharged to the exhaust system of the laboratory system for centralized treatment.
10 ° incline angle design following ergonomics principle, better operation experience.
The interior of the working area is made of high-quality stainless steel plate, which is convenient for cleaning, disinfection and sterilization.
The fully enclosed reinforced safety glass front window is operated in the cabinet with strict physical methods through isolation gloves.
The right side of the safety cabinet is provided with a transfer window, in which there is a UV sterilization lamp so that the product can be sterilized in the transfer window.
Air has 99.999% closure efficiency for particles larger than 0.12 μm through a high-quality ULPA ultra-high efficiency filter and is discharged after double filtration to ensure product samples
Safety protection of laboratory staff and laboratory environment.
The external cabinet is coated with an antibacterial coating, which can inhibit the growth of bacteria on the surface.
| Model | class III-1600 biosafety cabinet |
| Cleanliness | HEPA: ISO level 5 (Class 100 of 100) / ULPA: ISO level 4 (class 10 of 10) |
| Filter Type / Efficiency | HEPA：≥99.995% @0.3μm, ULPA：≥99.999% @0.12μm |
| Average Supply Wind Speed | 0.35m/s |
| Suction Air Speed | 0.6m/s |
| Vibration Half Peak | ≤3μm |
| Illuminance | ≥700Lx |
| Maximum Power Consumption | 0.6KW |
| Internal Pressure | 125 Pa |
| Number of Glove Mouth | 2 |
| Workspace Size | 1000×600×600 mm |
| External Size | 1600×760×1980mm |
| Specification and Quantity of Fluorescent Lamp / UV Lamp | 30Wx1 , 30Wx3 |
| Applicable Number | Single Person |
