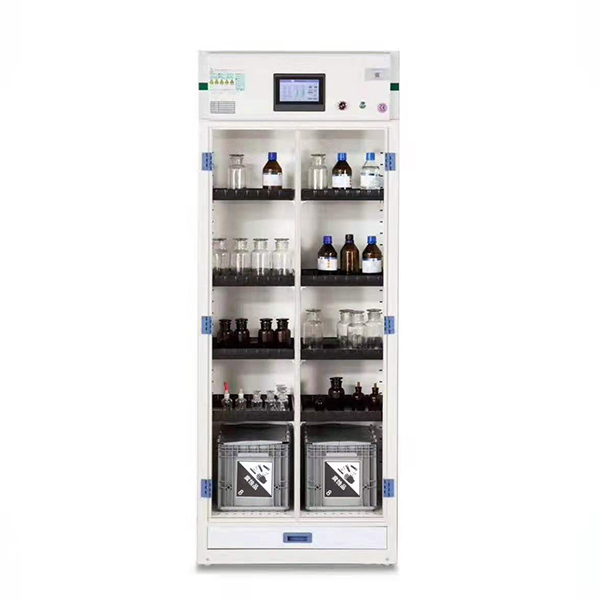

Filtered storage cabinets galvanized steel Type
Xunling
1: Main structure
≥1.2mm thickness galvanized steel, coated with epoxy resin, corrosion prevention, and rust protection.
2: Door Panel
≥6mm thickness acrylic plate, excellent moisture resistance, excellent chemicals resistance, durable, transparent and beautiful.
3: Shelf
Integrated PP tray, acid and alkali resistance, adjustable height, optional perforated galvanized shelves.
4: Leak drawer
Polypropylene PP inner tank, corrosion resistant, prevent broken reagent bottles from leaking outside.
| Model | G800 | G819 | G1600 |
Overall Size W*D*H (mm) | 800*510*2070 | 819*350*772 | 1600*510*2070 |
| Shelf | 8 Shelves | 2 shelves | 16 shelves |
| Shelf Bearing | ＞70kg/㎡ | ＞70kg/㎡ | ＞70kg/㎡ |
Cabinet Volume | 0.55 m³ | 0.14m³ | 1.1 m³ |
Storage Capacity ( bottles of 500ml) | 160 bottles | 48 bottles | 320 bottles |
| Treated-air Delivery | 200m³/h | 75m3/h | 220m³/h |
| Noise Level | 40dBA | ||
| Prefilter | Polyurethan prefilter or Activated charcoal | ||
| Control Sys | 7″LCD touch screen | ||
Monitoring & Alarming Sys | Temperature, Humidity, Filter Loading | ||
| Molecular Filters | SFGL OG, SFGL AG, SFGL FO, SFGL AM, SFGL H14, (For Organic,Inorganic,Formaldehyde,Ammonia,HEPA etc. Based on the chemicals need to filter) | ||
Self Cleaning Air purify Chemicals Storage Cabinet
1: Main structure
≥1.2mm thickness galvanized steel, coated with epoxy resin, corrosion prevention, and rust protection.
2: Door Panel
≥6mm thickness acrylic plate, excellent moisture resistance, excellent chemicals resistance, durable, transparent and beautiful.
3: Shelf
Integrated PP tray, acid and alkali resistance, adjustable height, optional perforated galvanized shelves.
4: Leak drawer
Polypropylene PP inner tank, corrosion resistant, prevent broken reagent bottles from leaking outside.
| Model | G800 | G819 | G1600 |
Overall Size W*D*H (mm) | 800*510*2070 | 819*350*772 | 1600*510*2070 |
| Shelf | 8 Shelves | 2 shelves | 16 shelves |
| Shelf Bearing | ＞70kg/㎡ | ＞70kg/㎡ | ＞70kg/㎡ |
Cabinet Volume | 0.55 m³ | 0.14m³ | 1.1 m³ |
Storage Capacity ( bottles of 500ml) | 160 bottles | 48 bottles | 320 bottles |
| Treated-air Delivery | 200m³/h | 75m3/h | 220m³/h |
| Noise Level | 40dBA | ||
| Prefilter | Polyurethan prefilter or Activated charcoal | ||
| Control Sys | 7″LCD touch screen | ||
Monitoring & Alarming Sys | Temperature, Humidity, Filter Loading | ||
| Molecular Filters | SFGL OG, SFGL AG, SFGL FO, SFGL AM, SFGL H14, (For Organic,Inorganic,Formaldehyde,Ammonia,HEPA etc. Based on the chemicals need to filter) | ||
Self Cleaning Air purify Chemicals Storage Cabinet
