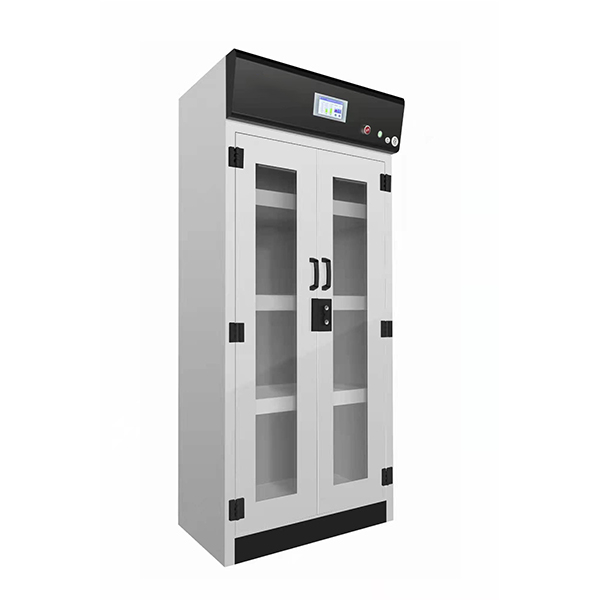

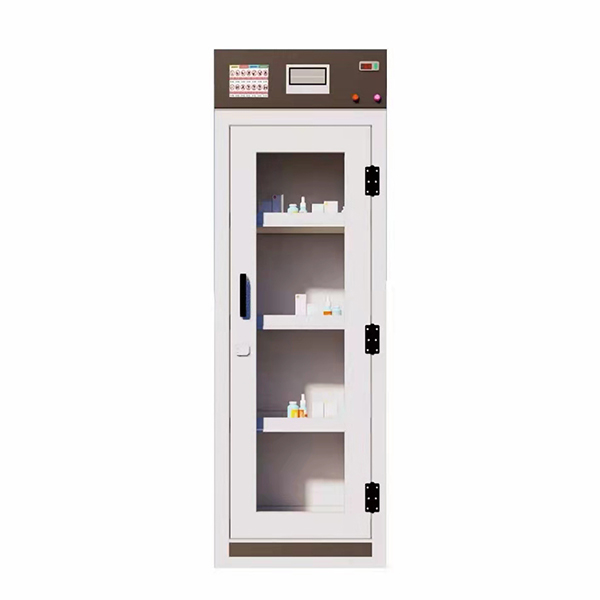

Filtered storage cabinets galvanized pp Type
Xunling
Availability: | |
---|---|
1: Main Structure
8mm white PP (polypropylene) plate, windows made from 5mmPVC plate. The shelves are made from 8mm white PP, designed movable, capable of freely fixing at any height to form different spaces. The tray anti-dumping design also meets the function of anti-leakage.
2: All the accessories made from polypropylene materials.
Model | P600 | P800 |
Overall Size W*D*H (mm) | 600*460*1800 | 800*460*1830 |
Shelf | 3 Shelves | 3 Shelves |
Shelf Bearing | >70kg/㎡ | >70kg/㎡ |
Cabinet Volume | 0.36 m³ | 0.5 m³ |
Storage Capacity | 80 bottles(500ml) | 120 bottles(500ml) |
Treated-air Delivery | 220m³/h | |
Noise Level | 40dBA | |
Prefilter | Polyurethan prefilter or Activated charcoal | |
Control Sys | 5″LCD touch screen | |
Monitoring & Alarming Sys | Temperature, Humidity, Filter Loading | |
Molecular Filters | SFGL OG, SFGL AG, SFGL FO, SFGL AM, SFGL H14, (For Organic,Inorganic,Formaldehyde,Ammonia,HEPA etc. Based on the chemicals need to filter) |
