In which applications are mixed flow fans commonly used?

Mixed Flow Fans represent a sophisticated fusion of axial and centrifugal fan technologies, making them exceptionally versatile for numerous applications across various industries. These innovative ventilation solutions have gained significant popularity due to their ability to deliver high airflow volumes while maintaining substantial static pressure capabilities. Mixed Flow Fans excel in environments requiring efficient air movement, particularly in laboratory settings, industrial facilities, and commercial buildings where space constraints exist alongside demands for powerful ventilation. Their unique design combines the directional flow characteristics of axial fans with the pressure-generating capabilities of centrifugal models, allowing them to perform optimally in scenarios where standard fans would prove inadequate.

Mixed Flow Fan Technology and Working Principles

The Hybrid Design Advantage

Mixed Flow Fans incorporate a revolutionary hybrid design that strategically combines the best elements of both axial and centrifugal fan technologies. This innovative engineering approach creates a ventilation solution that addresses the limitations of traditional fan systems while maximizing efficiency. The impeller design is particularly noteworthy, featuring specially angled blades that facilitate a complex airflow pattern. When the impeller rotates, air enters the fan axially from the inlet, then undergoes acceleration and direction change through the impeller's action. The air is ultimately discharged in a direction that's inclined to the axis, creating a spiral flow pattern that enables these fans to generate significant static pressure while maintaining high airflow volumes. This sophisticated working principle allows Mixed Flow Fans to satisfy diverse application requirements that would otherwise need multiple ventilation systems. Their ability to balance pressure and volume makes them ideal for complex ventilation scenarios in laboratories where precise airflow control is essential for maintaining clean environments, controlling hazardous fumes, and ensuring proper workspace ventilation without creating disruptive air currents.

Material Innovation and Construction

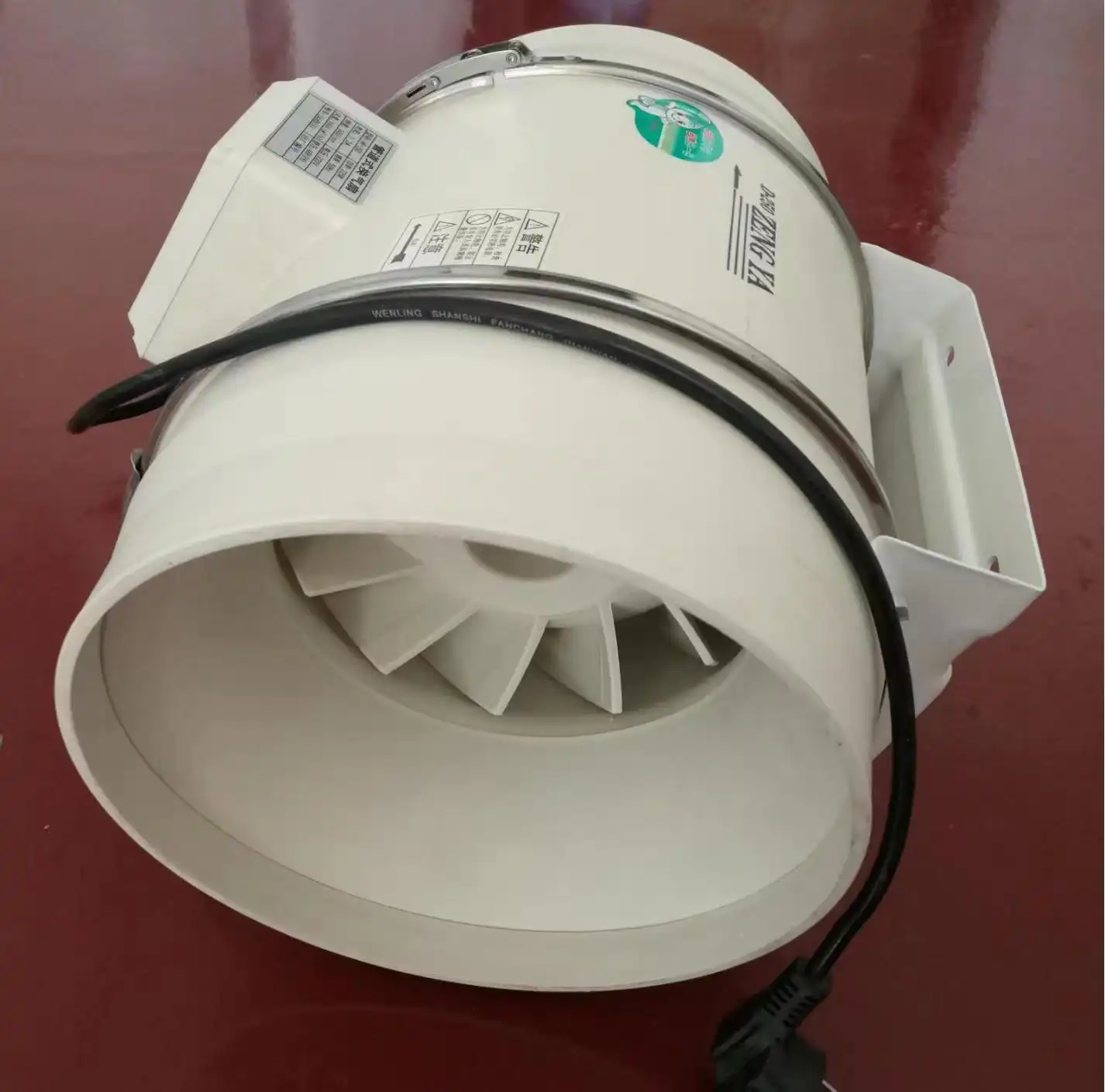

Mixed Flow Fans manufactured by Xi'an Xunling Electronic Technology Co., Ltd. utilize premium polypropylene (PP) construction, offering exceptional chemical resistance crucial for laboratory applications. This material choice represents a significant advancement over conventional fan materials, as PP provides superior resistance to acids, bases, and organic solvents commonly found in laboratory environments. The non-reactive nature of polypropylene ensures that these Mixed Flow Fans maintain their structural integrity and performance characteristics even when exposed to corrosive atmospheres. The construction also incorporates streamlined internal passages that minimize turbulence and energy losses during operation. Each fan undergoes rigorous quality control measures, including dynamic balancing of rotors to eliminate vibration issues that could compromise performance or generate excessive noise. Available in multiple diameter options (100mm, 150mm, 200mm, 250mm, and 315mm), these fans provide versatility for various installation requirements. This thoughtful material selection and construction methodology directly contribute to the exceptional durability and reliability that make Mixed Flow Fans ideal for continuous operation in demanding laboratory settings, where equipment failure could compromise research integrity or create safety hazards.

Technical Performance Parameters

The technical specifications of Mixed Flow Fans from Xi'an Xunling demonstrate impressive performance capabilities across different models. The product line offers various diameter options ranging from 100mm to 315mm, accommodating different installation requirements and space constraints. Power ratings scale appropriately with size, from 35W for the smallest model to 320W for the largest, ensuring energy-efficient operation relative to airflow output. All models maintain high rotation speeds around 2500-2600 r/min, which contributes to their excellent airflow generation. The smallest 100mm model delivers 220 m³/h airflow with 150 Pa static pressure, while the largest 315mm version achieves an impressive 2900 m³/h with 630 Pa static pressure. These robust performance parameters make these Mixed Flow Fans suitable for applications requiring precise airflow control and substantial air movement capability. Notably, despite their powerful performance, these fans maintain reasonable noise levels ranging from just 31dB for the smallest model to 65dB for the largest. This balanced approach to performance and noise control makes them particularly valuable in laboratory environments where noise disruption must be minimized. The combination of CE and ISO 9001 certifications further validates the quality and reliability of these technical specifications, ensuring users receive products that consistently deliver on their promised performance parameters while meeting stringent international standards for safety and quality management.

Application Versatility of Mixed Flow Fans

Laboratory and Research Environments

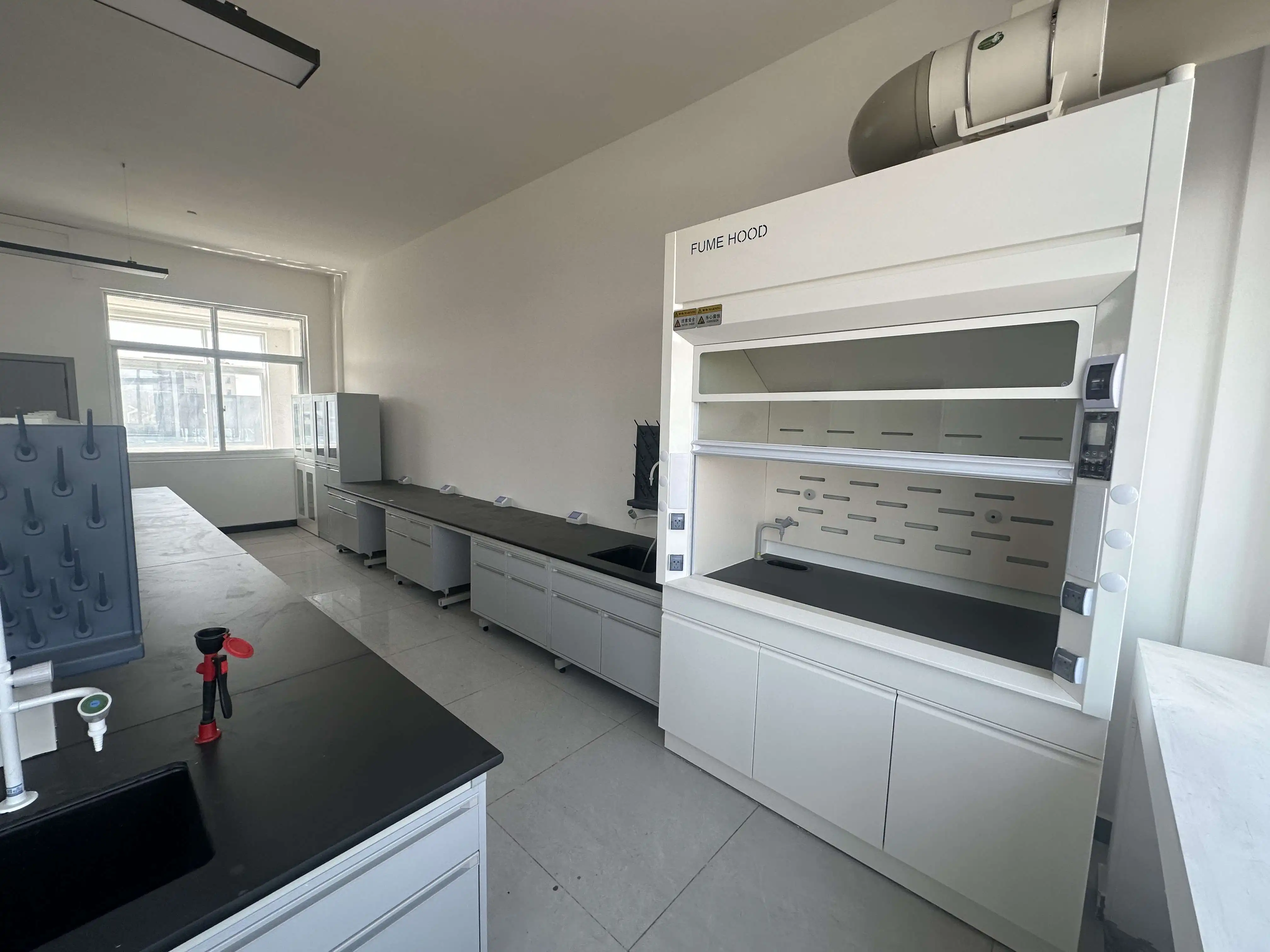

Mixed Flow Fans have become indispensable components in laboratory and research environments, where maintaining precise air quality and ventilation parameters is critical to experimental outcomes and personnel safety. In chemical laboratories, these fans effectively remove potentially hazardous fumes, vapors, and particulates, creating a safer working environment while ensuring accurate test results by preventing cross-contamination. Their design allows for effective integration with fume hood systems, where the combination of high airflow capacity and static pressure enables the complete extraction of noxious gases even when significant duct resistance is present. In biological research facilities, Mixed Flow Fans contribute to maintaining controlled environments with specific temperature, humidity, and air exchange requirements. Their reliable performance ensures that sensitive biological samples remain uncontaminated and that airborne pathogens are properly contained and removed from the workspace. The fans' low noise operation is particularly valuable in research settings, where excessive noise could disturb concentration or interfere with sensitive equipment readings. Xi'an Xunling's models, with noise levels ranging from just 31dB to 65dB depending on size, provide effective ventilation without creating disruptive sound levels. Additionally, in pharmaceutical laboratories, these fans help maintain the stringent air quality standards required for drug development and testing. Their corrosion-resistant PP construction proves especially valuable in these environments, where exposure to various chemical compounds could quickly degrade standard ventilation equipment, compromising both safety and research integrity.

Medical and Healthcare Applications

Mixed Flow Fans play a crucial role in medical and healthcare facilities, where air quality directly impacts patient outcomes and staff wellbeing. In hospital laboratories, these fans help maintain negative pressure environments necessary for handling infectious materials and preventing cross-contamination between different testing areas. The high efficiency and reliable performance of Mixed Flow Fans make them ideal for pathology departments, where consistent ventilation is essential for removing formaldehyde and other preservation chemicals that could pose health risks to medical personnel. Their application extends to pharmacy compounding areas, where they help create the controlled environments necessary for medication preparation by removing airborne particulates and maintaining appropriate air exchange rates. In veterinary laboratories and clinics, these fans assist in controlling odors and removing potentially zoonotic pathogens from the air, protecting both animal patients and human staff. The Mixed Flow Fans manufactured by Xi'an Xunling, with their range of capacities from 220 m³/h to 2900 m³/h, can be sized appropriately for various medical facilities, from small clinic laboratories to large hospital diagnostic centers. Their reliability is particularly valuable in healthcare settings, where ventilation system failures could have serious consequences for patient care and diagnostic accuracy. The fans' energy-efficient operation also contributes to reducing the overall environmental footprint of healthcare facilities, which increasingly face pressure to minimize energy consumption while maintaining stringent environmental control standards. By providing consistent and reliable air movement with minimal maintenance requirements, these fans help medical facilities focus on their primary mission of patient care rather than facility management concerns.

Industrial Manufacturing and Processing

Mixed Flow Fans have found extensive application in industrial manufacturing and processing environments, where they address complex ventilation challenges more effectively than traditional fan systems. In electronics manufacturing facilities, these fans help create the controlled airflow patterns necessary to prevent static buildup and remove potentially harmful soldering fumes and cleaning agent vapors. Their ability to maintain consistent airflow regardless of varying duct resistance makes them particularly valuable in complex industrial ventilation systems. Food processing operations benefit significantly from Mixed Flow Fans' capabilities, using them to control temperature, humidity, and air quality in production areas where maintaining specific environmental parameters directly impacts product quality and safety. The fans' corrosion-resistant PP construction proves advantageous in these settings, where exposure to cleaning chemicals and food acids could quickly degrade standard ventilation equipment. In pharmaceutical manufacturing, Mixed Flow Fans contribute to maintaining the clean room conditions necessary for production, ensuring proper air exchange rates and particulate control. Their reliable performance helps facilities meet stringent regulatory requirements while minimizing the risk of batch contamination. Chemical processing plants utilize these fans for effective fume extraction and process ventilation, where their capability to generate substantial static pressure enables them to overcome the resistance of filtration systems and long duct runs. Xi'an Xunling's range of Mixed Flow Fans, with static pressure capabilities ranging from 150 Pa to 630 Pa, provides industrial facilities with options appropriately sized for their specific ventilation requirements. The fans' energy-efficient operation also helps reduce operating costs in industrial settings where ventilation systems often run continuously, making them a cost-effective solution for facilities seeking to balance performance with energy consumption considerations.

Performance Advantages and Selection Criteria

Energy Efficiency and Cost Considerations

Mixed Flow Fans offer remarkable energy efficiency that translates directly to operational cost savings for facilities deploying these ventilation solutions. Their hybrid design fundamentally reduces energy consumption by optimizing the air movement process, requiring less power to generate the same airflow and pressure compared to conventional fan systems. This efficiency stems from the specially designed impeller blades that minimize turbulence and energy losses during operation. Xi'an Xunling's models demonstrate this energy-conscious design across their product range, from the compact 100mm model consuming just 35W while delivering 220 m³/h airflow to the larger 315mm version using 320W to generate an impressive 2900 m³/h. This favorable power-to-performance ratio enables facilities to achieve their ventilation requirements with lower energy expenditure, directly reducing electricity costs over the system's lifetime. Beyond direct energy savings, these Mixed Flow Fans contribute to operational cost efficiency through their durability and minimal maintenance requirements. The high-quality PP construction resists corrosion and degradation, extending service life and reducing replacement frequency. Their balanced operation minimizes wear on bearings and other components, further reducing maintenance costs and downtime expenses. When evaluating total cost of ownership, these fans consistently outperform conventional options, providing substantial long-term value despite potentially higher initial investment. Additionally, as energy regulations become increasingly stringent worldwide, the efficiency of these fans helps facilities remain compliant with emerging standards while avoiding potential penalties or retrofit requirements. For organizations implementing comprehensive energy management programs, integrating these efficient Mixed Flow Fans represents a tangible step toward sustainability goals while simultaneously delivering the performance necessary for critical laboratory, medical, and industrial applications.

Installation and Space Optimization

Mixed Flow Fans offer significant advantages in installation flexibility and space utilization, making them ideal for modern facilities where maximizing usable space is increasingly important. Their compact cylindrical design allows for straightforward inline duct mounting, eliminating the need for elaborate mounting brackets or reinforced support structures typically required for bulkier fan systems. This streamlined installation process reduces both labor costs and installation time, allowing facilities to implement ventilation upgrades with minimal disruption to ongoing operations. The space-efficient design of Mixed Flow Fans is particularly valuable in laboratory environments where ceiling space above workstations is often crowded with service lines, lighting fixtures, and other essential infrastructure. Xi'an Xunling's range of Mixed Flow Fans, with diameters from 100mm to 315mm, ensures appropriate sizing options for various space constraints while maintaining necessary performance parameters. Their design facilitates both horizontal and vertical mounting orientations, providing additional flexibility for system designers working with complex spatial limitations. The in-line configuration of these fans also simplifies ductwork design, allowing for straighter runs with fewer direction changes, which further enhances system efficiency by reducing pressure losses through the ventilation network. This configuration advantage translates to smaller overall system footprints and potentially reduced construction costs for new facilities. Additionally, the compact nature of Mixed Flow Fans often eliminates the need for dedicated mechanical rooms to house ventilation equipment, freeing valuable floor space for productive use. For renovation projects in existing buildings, these fans' modest space requirements and flexible mounting options frequently allow for ventilation improvements without structural modifications or extensive remodeling work. This combination of installation simplicity and space optimization makes Mixed Flow Fans an increasingly popular choice for facility managers and designers seeking to maximize both performance and spatial efficiency in their ventilation systems.

Maintenance Requirements and Durability

Mixed Flow Fans manufactured by Xi'an Xunling Electronic Technology Co., Ltd. demonstrate exceptional durability and minimal maintenance requirements, making them the preferred choice for applications where reliability is paramount. The premium polypropylene construction provides outstanding resistance to chemical exposure, effectively preventing corrosion and degradation that would quickly compromise conventional fan systems in laboratory environments. This material choice ensures consistent performance even when exposed to aggressive chemical fumes and vapors commonly present in research and industrial settings. The fans' sealed motor design protects critical electrical components from contamination, extending service life while reducing failure risks in demanding applications. This thoughtful engineering approach minimizes the need for frequent inspections or component replacements, allowing maintenance teams to focus their attention on other facility priorities. The balanced operation of these Mixed Flow Fans significantly reduces bearing wear and vibration-related stress, which are common causes of premature fan failure in less sophisticated systems. This balanced performance translates directly to extended service intervals and reduced replacement frequency, lowering the total cost of ownership while ensuring consistent ventilation performance. Xi'an Xunling's commitment to quality is evident in their 5-year warranty offering, which substantially exceeds industry standards and demonstrates confidence in their products' longevity. Routine maintenance for these fans typically involves only periodic exterior cleaning and simple annual inspections, making them exceptionally user-friendly from a facility management perspective. Their design also facilitates straightforward component access when service is eventually required, minimizing downtime and reducing maintenance complexity. For critical applications where ventilation system failure could compromise safety or research integrity, these highly durable Mixed Flow Fans provide essential peace of mind. Their established track record of reliable operation in demanding environments makes them particularly valuable in facilities where consistent performance is non-negotiable and where unplanned ventilation system downtime could have significant operational or safety implications.

Conclusion

Mixed Flow Fans have established themselves as essential ventilation solutions across laboratory, medical, and industrial applications due to their unique combination of high airflow capacity, substantial static pressure, and energy efficiency. Their versatile performance characteristics make them ideal for complex ventilation challenges where traditional fan systems would prove inadequate or cost-prohibitive.

Ready to enhance your facility's ventilation with cutting-edge Mixed Flow Fan technology? At Xi'an Xunling Electronic Technology Co., Ltd., we deliver more than superior products – we provide complete ventilation solutions tailored to your specific requirements. Our team of experts stands ready to analyze your needs and recommend the optimal configuration for your application. With our 5-day delivery, 5-year warranty, custom design capabilities, and comprehensive OEM support, you'll experience unmatched service quality alongside exceptional product performance. Don't compromise on ventilation quality when safety and efficiency matter most. Contact us today at xalabfurniture@163.com to discuss how our Mixed Flow Fans can transform your facility's air management system.
